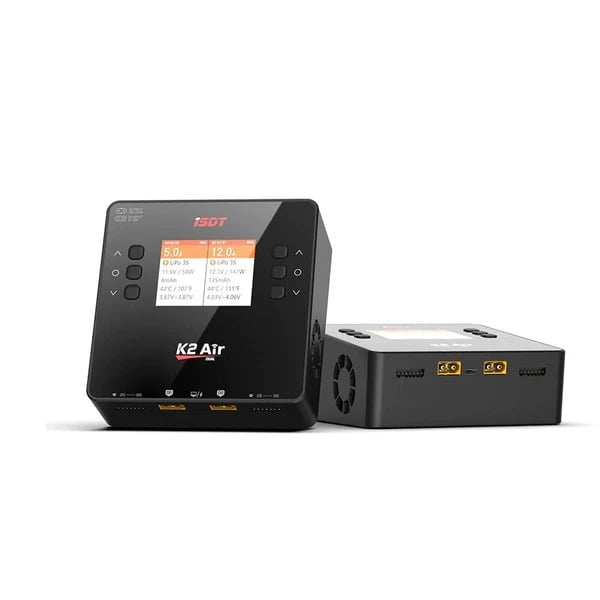

ISDT K2 Air Smart Charger
- Input Voltage: 10~30V DC/100~240V AC
- Output Voltage: 1~30V DC
- Max Input Current: DC 35A
- Charging Current: 0.2~10A x 2. All-in-one control for LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S batteries
K2 Air adds the wireless connection function. With ‘ISDLink’ APP, you can preset charging tasks, monitor the charging process at any time. Also, one click to OTA upgrade. Wirelessly operate, awesomely simple.
ISDT K2 Air AC 200W DC 500Wx2 20A Dual Channel Balance Lipo Charger Discharger
2.8″ IPS LCD Display
- Low power consumption, 178° visible angle
- Display clear and distinct, even in varies hard environment or angles as well as in strong sunshine.
Two-way USB interface
- By connecting the charger microUSB port to the PC, all series can acquire latest firmware upgrading.
- It can also output 5V/2A power through the USB Type-C interface, For charging mobile devices.
Wireless Operation, start with “ISDLink”
K2 Air adds the wireless connection function. With ‘ISDLink’ APP, you can preset charging tasks, and monitor the charging process at any time. Also, one-click to OTA upgrade. Wirelessly operate, awesomely simple.
2.8″ IPS LCD Display
Low power consumption, 178° visible angle
Display clear and distinct
Even in varies hard environment or angles
As well as in strong sunshine.
Two-way USB interface
By connecting the charger microUSB port to the PC,
all series can acquire latest firmware upgrading.

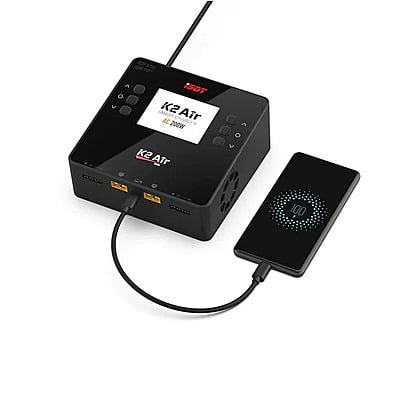

It can also output 5V/2A power through the USB Type-C interface,
For charging mobile devices.
Support Brand New
Smart Battery Technology
Smartly exchange information with BattAir battery,
Automatically identify the battery type,
match the optimal charging parameters.
Safe and smart.
Wireless Operation,
start with “ISDLink”
K2 Air adds the wireless connection function.
With ‘ISDLink’ APP, you can preset charging tasks,
monitor the charging process at any time.
Also, one click to OTA upgrade.
Wirelessly operate, awesomely simple.
Specifications
| Input voltage: | AC 100~240V / DC 10~30V |
| Output voltage: | DC 1~30V |
| Max. input current: | DC 35A |
| Charging current: | 0.2~20A x2 |
| Discharging current: | 0.2~1.5A x2 |
| Balance current: | 1.5A/Cell Max |
| Max. discharging power: | 15W x2 |
| Max. charging power: | AC 200W / DC 500W x2 |
| Abnormal voltage alarm: | Support |
| Incorrect cell count setting alarm: | Support |
| Supported battery types and cell count: | LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S |
| Parallel charging power and current: | 800W/35A |
| Parallel discharge power and current: | 30W/3A |
| Working temperature: | 0~40℃ |
| Storage temperature: | -20℃~60℃ |
| Dimension: | 135x135x64mm |
| Weight: | About 700g |
